Battery Level Indicator Module
190.00৳ 230.00৳ (-17%)

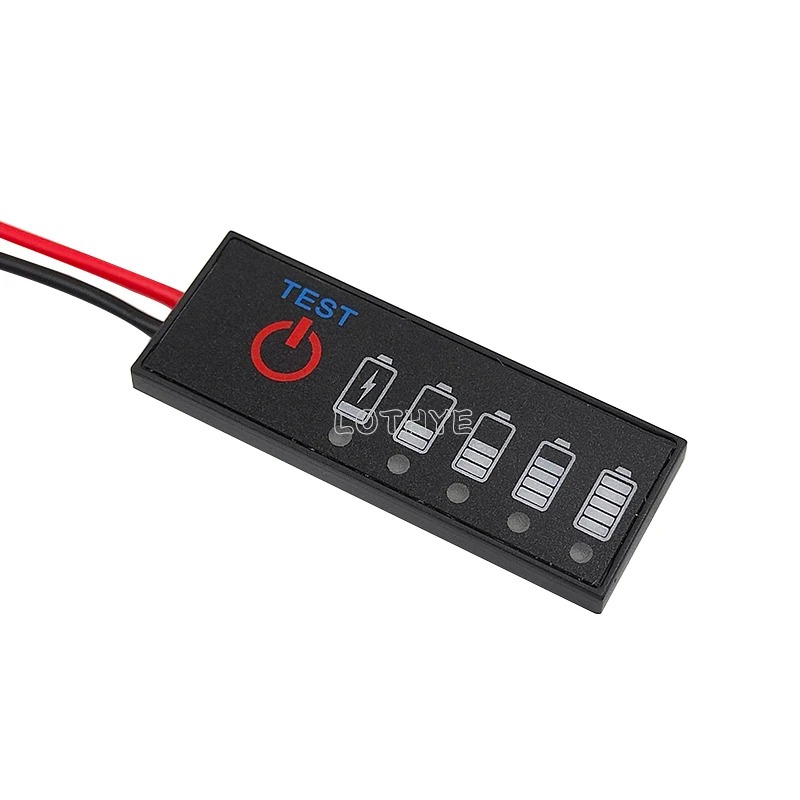

The Universal Battery Level Indicator is a compact, ultra-thin LED module used to monitor the real-time capacity of 18650 Lithium-ion, LiPo, or Lead-acid batteries.
Quick Highlights
- Visual Display: Uses 5 LEDs to show power levels (20%, 40%, 60%, 80%, 100%).
- Energy Efficient: Features a “TEST” button that activates the LEDs only when pressed; it auto-shuts off after 3–10 seconds to prevent battery drain.
- Plug & Play: Simple 2-wire connection (Red to Positive, Black to Negative).
- Durable Design: Includes reverse polarity protection to prevent damage if wired incorrectly.
- Versatile: Compatible with voltages ranging from DC 3V to 34V (depending on the specific cell configuration selected).
Would you like to know the voltage thresholds for each LED bar?
Battery Level Indicator Module
This device is a Universal Battery Capacity Level LED Indicator. It’s a compact, “ultra-thin” module designed to give you a quick visual of how much juice is left in your batteries.
Battery Level Indicator Module
Detailed Features

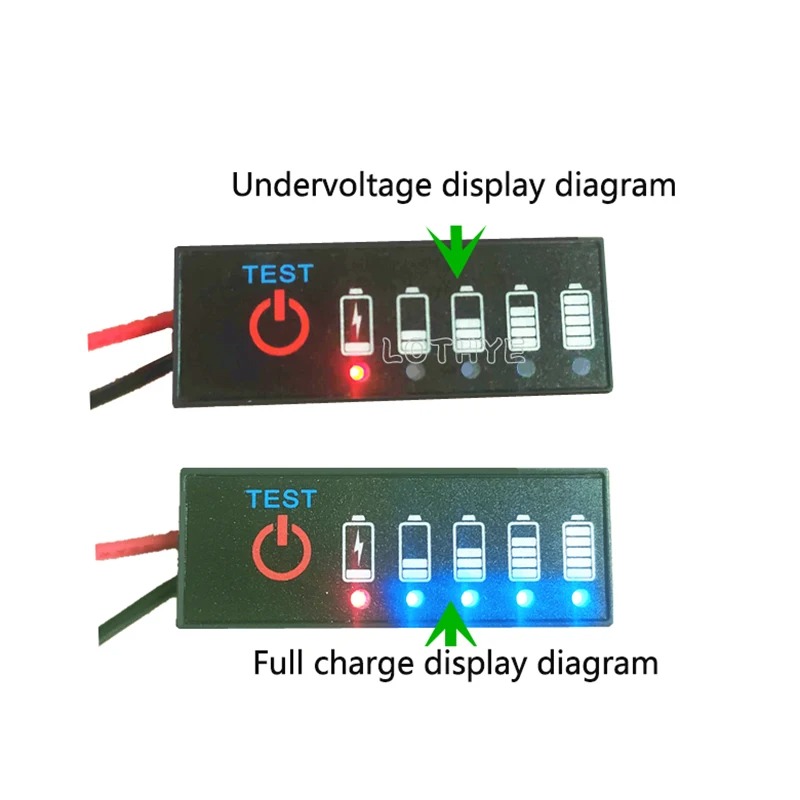

- Intuitive Display: It uses 5 LED segments to show capacity. Typically, the first segment (a battery frame) indicates power is present, while the four bars represent 25%, 50%, 75%, and 100% charge.
- One-Touch Operation: It features a red “TEST” button. You press it to trigger the display, which then stays lit for about 3–10 seconds before auto-extinguishing to save power.
- Safety Built-In: Most versions include reverse connection protection, meaning if you accidentally swap the red and black wires, the module won’t burn out.
- Universal Compatibility: Depending on the specific sub-model, these can be used with:
- Lithium-Ion/LiPo: 1S (3.7V) up to 8S (29.6V).
- Lead-Acid: 12V or 24V batteries
-
Technical Specs
Feature Specification Operating Voltage DC 3V to 34V (varies by model) Working Current < 5mA (very low draw) Dimensions Approx. 40mm x 15mm Refresh Rate Approx. 300ms -
How to Install
- Connect Wires: Solder or clip the Red wire to the Positive (+) terminal and the Black wire to the Negative (-) terminal.
- Mounting: Because it’s thin, it can be easily glued or taped to the outside of a battery pack or DIY project box.
- Check Power: Simply tap the button whenever you need a status update.
Are you looking to use this for a DIY power bank or a specific power tool battery?
